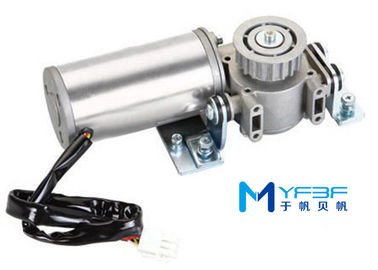

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door
High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door

Large Image :  High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door Get Best Price

Product Details:
Place of Origin: China
Brand Name: YFBF
Certification: CE
Model Number: YF200
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiation
Packaging Details: Stardard Carton, 10PCS/CTN
Delivery Time: 15-30 Workdays
Payment Terms: T/T, WESTERN UNION, PAYPA
Supply Ability: 30000PCS per Month
Detailed Product Description
Product Name: Brushless DC Electric Motor Usage: Heavy Duty Automatic Sliding Door
Motor Type: Brushless Rated Power: 100W
Protection Class: IP54 Weight: 2.5KGs
High Light:

brushless direct current motor

,

powerful brushless dc motor

Electronic Sliding Door Automatic Door Motor / DC Brushless Gear Motor 24V 100W





Quick Detail:



As one of the best motor manufacturer in China, Ningbo Beifan has more than 10 years experience in automatic door motor area. Our automatic door motors get good reputations in China, Thailand, Turkey, Iran,Germany, Poland, Brazil, Mexico and etc. Based on top quality, competitive price and good service, we won the trust and good relationship with our custromers and partners.



Feature description:



1. Worm gear transmission, high transmission efficiency, large output torque.

2. we adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.

3. small volume, strong power, powerful working force.

4. it is made with high-strength aluminum alloy material, strong and durable

5. it can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.



Description:



Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.



Drawing:

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door 0



Specifications:



Model YF200
Rated Voltage 24V
Rated Power 100W
No-load RPM 2880 RPM
Gear Ratio 1:15
Noise Level ≤50dB
Weight 2.5KGS
Protection Class IP54
Certificate CE
Lifetime 3 million cycels, 10years





Competitive Advantage:



1. Longer life than commutated motors from other manufacturers
2. Low detent torques
3. High efficiency
4. High dynamic acceleration
5. Good regulation characteristics
6. High power density

7. Robust design
8. Low moment of inertia



Automatic Sliding Door Operator:

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door 1



Application:



High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door 2

High Power 24V Brushless DC Electric Motor For Heavy Duty Automatic Sliding Door 3
