Home ProductsAutomatic Door Motor

Small Size Automatic Door Motor

Small Size Automatic Door Motor

Small Size Automatic Door Motor
Small Size Automatic Door Motor

Large Image :  Small Size Automatic Door Motor Get Best Price

Product Details:
Place of Origin: Ningbo,China
Brand Name: YFBF
Certification: CE
Model Number: YF200
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiation
Packaging Details: Stardard Carton, 10PCS/CTN
Delivery Time: 15-30 Workdays
Payment Terms: T/T, L/C
Supply Ability: 30000PCS per Month
Detailed Product Description
Product Name: Brushless DC Gear Motor Feature: Small Size
Motor Type: Brushless, 24VDC, 100W Function Able: Automatic Operation/hold-open/closed/half-open
Security: Automatic Stop/reverse During Opening Or Closing Weight: 2.5KGs
High Light:

auto door motor


electric sliding door motor

Electronic Sliding Door Automatic Door Motor / DC Brushless Gear Motor 24V 100W



Feature description:


Motor color can be customized according to different customer requirements.

1. Brushless DC motor, small size, high power, low noise operation;

2. Automatic multi-functional motor, motor body and gear box are integrated, to avoid small belt drive vibration noise;

3. Design of worm gear transmission, high transmission efficiency, large output torque, low noise;

4. With Hall signal output, accurate control. Connection: JST terminal used in Japan;

5. Zinc alloy synchronous pulley, with the characteristics of light weight, good absorption, aging resistance, low temperature and other characteristics, effectively reduce the running process of rolling friction noise;

6. Installation is simple, safe, small size, with the installation bracket.


Competitive Advantage:


1. LOW NOISE than brushed motor, because of its precise manufacturing technology and direct driving design.

2. Brushless motors have LONG LIFE than brushed motors (more than 3,000,000 cycles), with 10years warranty.

3. Small size and Excellent Design, high-strength wear-resistant gears and high processing makes it more stable, quiet, longer life, higher efficiency, larger torque.

4. Leading technologies, multi- functions, dependable performance while being cost efficient.

5. Widely used for Automatic Doors: including Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, Hospital Door, be installed in the hotels, airports, office buildings, shopping malls, hospitals etc.




Brand  YFBF
Model YF200
Rated Voltage   24V
Rated Power       100W
No-load RPM 2880RPM
Gear Ratio 1:15
Noise level ≤50dB
Weight 2.5KGs
Certificate CE
Lifetime 3million cycles, 10 years




Small Size Automatic Door Motor 0

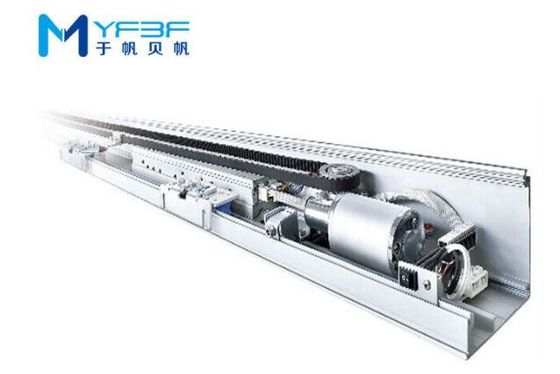

Automatic Sliding Door Operator:

Small Size Automatic Door Motor 1



Small Size Automatic Door Motor 2

Small Size Automatic Door Motor 3

Raw Materials in the Motor:

Small Size Automatic Door Motor 4

Small Size Automatic Door Motor 5Small Size Automatic Door Motor 6
