| Product Name: | Automatic Door Motor | Type: | Brushless |
|---|---|---|---|
| Voltage & Power: | 24V 60W | Applicatiion: | Automatic Sliding Door Operator |
| Weight: | 2.5KGs | Feature: | Small Size |
| High Light: | auto door motor,electric sliding door motor |
||

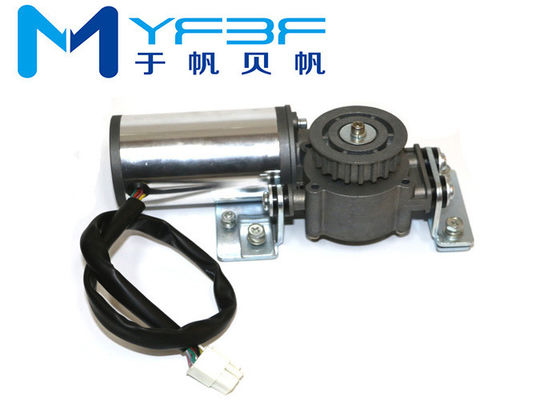

24V Brushless DC Automatic Door Motor Used In Sliding Glass Door Operator
Features:
1. Motors can be ODM or OEM.
2. Brushless DC Automatic Door Motor with small size, strong power and ultra-quiet sound design.
3. Worm gear transmission, high transmission efficiency, large output torque.
4. Hall sensor inside.
5. alloy synchronous pulley, with the characteristics of light weight, good absorption, aging resistance, low temperature and other characteristics, effectively reduce the running process of rolling friction noise.
Competitive Advantages:
1. With Brushless DC technology, Lower Noise than brush motor. It can be with better reliability.
2. Brushless Motor has LONGER Working Life than Brush motor.
3. Small Volume, Strong Power, Powerful working force.
4. It is make with high-stregth alloy material, strong and durable.
5. Fully sealed structure, No OIL LEAKING.
6. Widely used in Automatic Door openers, including Automatic Sliding Door opener, Swing Door opener, Curved Door Operator, Folding Door systems, Hermetical Door Operator, Telescopic Door Opener, Revolving Door and etc, which are installed in hotels, airports, office building, shopping mall, hospitals and etc.
Specifications:
| Brand | YFBF |
| Model | YF150 |
| Rated Voltage | 24V |
| Rated Power | 60W |
| No-load RPM | 3000RPM |
| Gear Ratio | 1:15 |
| Noise level | ≤50dB |
| Weight | 2.5KGs |
| Certificate | CE |
| Lifetime | 3million cycles, 10 years |
24V Brushless DC Automatic Door Motor
As one of the best motor manufacturer in China, Ningbo Beifan has more than 10 years experience in automatic door motor area. Our automatic door motors get good reputations in China, Thailand, Turkey, Iran,Germany, Poland, Brazil, Mexico and etc. Based on top quality, competitive price and good service, we won the trust and good relationship with our custromers and partners.
Drawing:
